Plastic UPVC PVC Roofing Sheet Making Machine

Get the best quality plastic UPVC PVC roofing sheet making machines from our factory. Top-notch production with high efficiency and durability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
80/156
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
PVC Roof Tile Machine/Plastic Machinery
PVC Roof Tile Machine/Plastic Machinery
PVC Wave Board Extrusion Line
PVC Corrugated Board Production Line
Plastic PVC Wave Tile Extrusion Machine
Plastic PVC Wave Tile Extrusion Machine
Width
840-1130mm, 1130-1450mm
PVC Roofing Sheet Extrusion Line Make
Conical Double Screw Extruder
PVC Wave Plate Production Line
Single Layer or Multi-Layers
PVC Sheet Production Line
Plastic Sheet Machine Line
Plastic PVC Corrugated Sheet Roof Line
PVC Material, Double Layer
High Output of PVC Sheet Machine
PVC Wavy Roofing Machine Line
Motor Brand
Simenz
Inverter Brand
ABB
Transport Package
as The Requests
Specification
CE
Trademark
WEIER
Origin
Qingdao, China
HS Code
84772090
Production Capacity
10 Sets/Month

Product Description

PVC roofing tiles machine PVC UPVC Bamboo roofing extrusion line

Product Description



1. Raw material & Final product of ROOF TILE MAKING MACHINE:

Raw material & formulation

PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc

Central height:

1000mm

Max. Haul-off speed:

3m/min

Operation direction

From right to left (face to the operation panel)

Machine color

Standard color: RAL7016 (Anthracite grey) ;

RAL9002 (Grey white)

Description final product & Output capacity

Singlelayers PVC Roofing tile;

Width:500-1500mm,Thickness: 1.2~3.0mm;

Wave distance:180mm; Wave height:30mm;

Output:300-400kg/h(Depending on CaCO3 proportion)



2. Work condition (provide by customer) of ROOF TILE MAKING MACHINE

Warehouse/Workshop

Construction of foundations, construction works, earthworks, and wall works;

Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools;

Dimension (M×M×M): 20 (Length)×2.0 (width) ×2.5 (Height)

Crane: Machine positioning

Temperature & Humidity

≤40°C, ≤95%

Power supply

Supply voltage: 3*380V+N+PE;

Voltage tolerance: +5%/-5%;

Control voltage: 24VDC+220VAC;

Frequency: 50HZ+-2%

Wire/cables/water hose:

Wires/cables: from power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine;

Water hose: supply water to machines and pools;

Cooling Water

Without dissolved or suspended minerals as phosphor, sulphur, iron, etc.

Inflow temperature T1: max. 15°C;

Outflow temperature T2: T2=T1+5°C;

Hardness: 5-8 OdH;

Reflux: without pressure

Lubrication oil:

Sinopec, Exxon mobile

Compressor

Unnecessary



3. Energy consumption of  ROOF TILE MAKING MACHINE

Installation power

135KW,the real consumption only 80%

Cooling Water

≤20°C,   ≥0.3Mpa, ~4-5tons/hr

Compressedair

0.3m3/min, >0.6Mpa

Manpower

2-3 Person

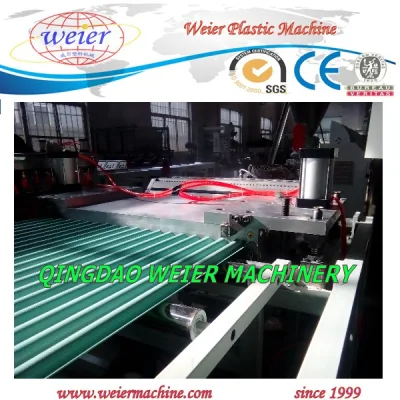

Plastic UPVC PVC Roofing Sheet Making Machine

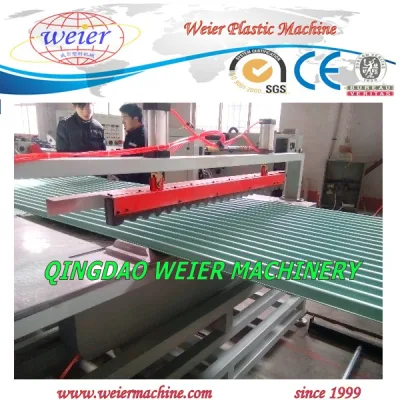

Plastic UPVC PVC Roofing Sheet Making Machine

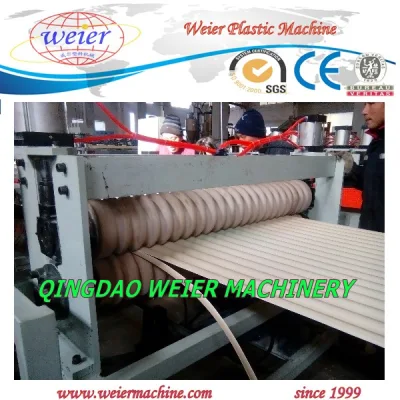

Plastic UPVC PVC Roofing Sheet Making Machine
Plastic UPVC PVC Roofing Sheet Making Machine


Product Specification

Glazed Tile Extrusion Line/Machine:

Glazed tile extrusion line/machine is consisted by following parts:

1) Extruder,

2) T-die and shaping downstream units,

Which can continuous extruding synthetic resin tile, single layer PVC glazed tile, PVC/PMMA and PVC/ASA composite multi-layer glazed tile

Glazed tile extrusion line/machine is mechanotronics, with the advantages of:

1) High production efficiency;

2) Reasonable structure compact;

3) Convenient operation and maintenance

4) Long use life etc.

Compare with ordinary plastic tile, glazed tile has more beautiful appearance, better quality, and strong durability

And some special features, such as anti-fire, anti-corrosion, anti-freeze, good weather resistance and color retention,etc.



Application of  concrete roof tile
Glaze roof tile and resin tile can be high-grade plants, steel factories, warehouses, farm market, market access, sheds and other high-end roofing materials. Especially in corrosive chemical plants, smelters, ceramic plants, soy sauce factory, chemical plants, printing and dyeing plant, organic solvent factory, acid, alkali and other corrosive plant.



4. Main commercial terms of ROOF TILE MAKING MACHINE

Project

PVC roofing tile extrusion line

Payment term

30% as down payment by T/T; 70% by T/T before delivery and after inspection

Delivery time

70 days since the date of receiving down payment

Packing

Wood pallet covered by plastic film

Warranty period

13 months since date of bill of lading

Company Qualification
Plastic UPVC PVC Roofing Sheet Making Machine


Company workshop has the ready machien for show warmly welcome you can come and visit our company .If youw ant to know more about the machine pls contact
