Basic Info.
Model NO.
Chemshun Ceramics
Industrial Equipment
Hopper,Chute,Hydrocyclone,Pipe Fitting
Performance
High Wear Resistant,Corrossion Resistant
Advantage
Save Unecessary Down-Time,Use for Long Life
Usage
as Ceramic Lining,Pipe Lining,Pulley Lagging
Composite
Ceramic,Ceramic/Rubber,Ceramic/Rubber/Steel
Sticking Way
Direct Bond Adhesive,Weld,Vulcanization
Transport Package
Paper Carton + Pallet
Specification
Customized
Trademark
Chemshun Ceamics
Origin
P. R. China
Production Capacity
10000ton/Year
Product Description
Product Description :

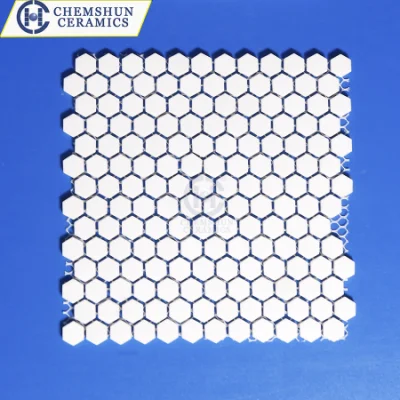

Chemshun wear resistant alumina mosaic tile liner, the perfect solution for wear protection on irregular surfaces. These small, abrasion resistant materials are normally can be classified into square alumina mosaic tiles, hexagonal ceramic tile liner and so on.
Chemshun tiles are extremely versatile and can be used in a variety of applications.
These small, abrasion resistant materials are normally glued in a net, forming specific sized for irregular surface ,alumina tile mats that are easy to install. Secondly these tile wear liner are ideal for used as pulley lagging ceramics ;thirdly small ceramic lining pieces can be vulcanized in rubber sheet forming rubber ceramic wear plates, making them a perfect choice for conveyor systems or other machinery that requires wear protection.
In summary, Chemshun Ceramics can supply mosaic tile liner with customized and standard sizes, which are the smart choice for any industry that requires durable, long-lasting wear protection.
Application of Chemshun alumina mosaic tiles:
Chemshun ceramic mosaic tile sizes and property
>> Technical Data
Chemshun wear resistant alumina mosaic tile liner, the perfect solution for wear protection on irregular surfaces. These small, abrasion resistant materials are normally can be classified into square alumina mosaic tiles, hexagonal ceramic tile liner and so on.
Chemshun tiles are extremely versatile and can be used in a variety of applications.
These small, abrasion resistant materials are normally glued in a net, forming specific sized for irregular surface ,alumina tile mats that are easy to install. Secondly these tile wear liner are ideal for used as pulley lagging ceramics ;thirdly small ceramic lining pieces can be vulcanized in rubber sheet forming rubber ceramic wear plates, making them a perfect choice for conveyor systems or other machinery that requires wear protection.
In summary, Chemshun Ceramics can supply mosaic tile liner with customized and standard sizes, which are the smart choice for any industry that requires durable, long-lasting wear protection.
Application of Chemshun alumina mosaic tiles:
- Used for conveyor pulley lagging
- Vulcanized in composite ceramic rubber sheet
- Pasted on the nylon net or Acetate cloth
Chemshun ceramic mosaic tile sizes and property
| Properties | Unit | CHEMSHUN 92 | CHEMSHUN 95 |
| Al2O3 | % | 92 | 95 |
| Density | g/cm3 | 3.6 | 3.65 |
| Moh's Hardness | Grade | 9 | 9 |
| Products | Size in mm (L*W*T) or (S*T) | ||
| Ceramic square tile | 10*10*2~10, 17.5*17.5*2~15, 20*20*2~20, 33*33*5~25 etc | ||
| Ceramic hexagonal tile | 6*3~6, 11*3~25, 12*3~25,19.05*3~25 | ||
| Ceramic block | 32*32*32, 40*40*40 | ||
| Hex/square tile mats | 150*150, 300*300, 500*500 | ||
| Material of mats | Paper, nylon mesh, acetate cloth etc. | ||
>> Technical Data
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 270 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1000 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
| Fracture Toughness (Mpa.M1/2) | 3-4 |
| Maximum Operation Temperature(ºC) | 1450 |
